循环和过程恒温器 Integral IN 550 XT

Integral IN 550 XT

只需通過設備上的現代TFT顯示屏操作Integral過程恆溫器，或者通過帶觸摸顯示屏和擴展功能的直觀控制單元操作。

订购编号: L002675

咨询产品

返回至概览循环和过程恒温器

性能特征

Process thermostat with integrated cooling system for dynamic temperature control within external circuits

Management of heat transfer liquids with stored properties

Fully electronic continuous controller with PID action for internal & external control

Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids

Port for external Pt100 integrated, second external Pt100 feasible via interface module

Integrated and adjustable bypass

Very small internal volume and big non-thermostated expansion vessel (cold fluid layer system)

Condenser cooling Air

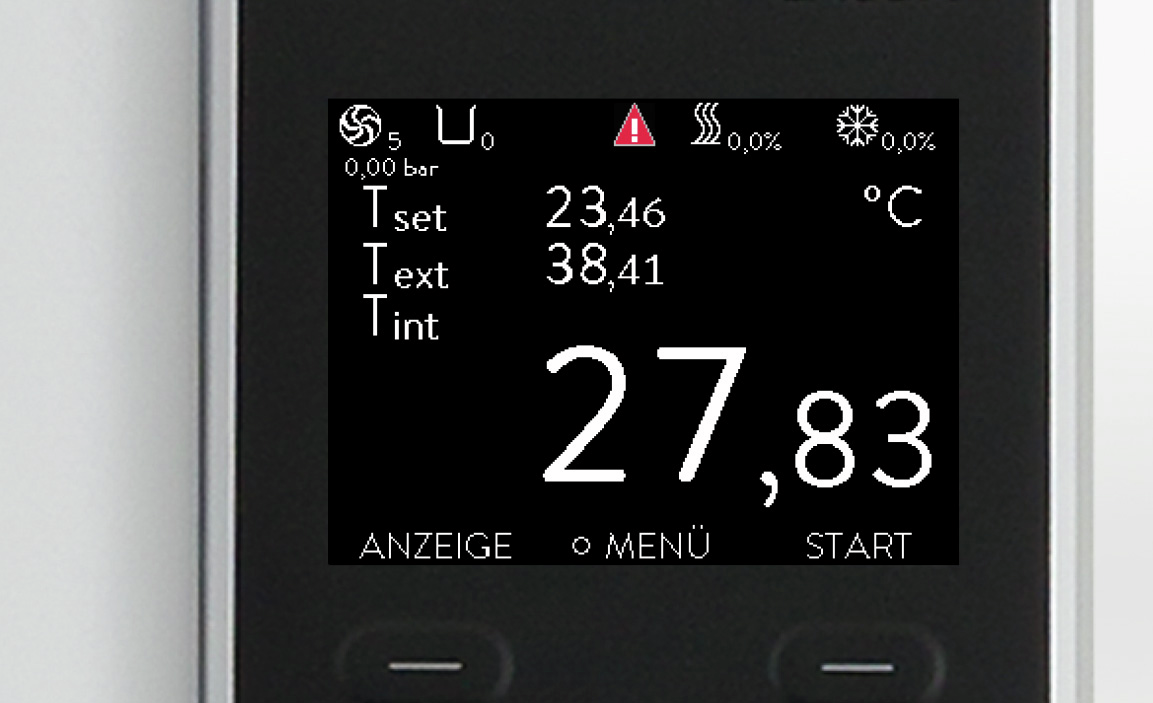

Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile

Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection

Self adapt function for determination of control parameters

Powerful LAUDA Variopump (pressure pump) with 8 selectable output levels or control of outflow pressure

Remote fault indication through floating contact

Programmer with 150 temperature/time segments that can be separated into 5 programs

Integrated web server for browser based operation in local area networks via PC, tablet or smart phone, secure data transfer due to authentication procedure and encryption

Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024

Clear text menu navigation, six selectable languages DE, EN, FR, ES, IT, RU

SelfCheck Assistant for system diagnosis

PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system

USB and Ethernet interface equipped as standard

Option for upgrading up to 2 additional interfaces (RS 232/485, Profibus, analogue, contact or EtherCAT module)

Digital display of pump pressure

SmartCool system for energy-saving digital cooling management including compressor on-off control

工作范围

最小工作温度

-50 °C

最大工作温度

220 °C

温度稳定性

0.05 ± K

技术特征

工作温度范围

-50 ... 220 °C

环境温度范围

5 ... 40 °C

温度稳定性

0.05 ± K

最大加热功率

8 kW

最大功率消耗

10.5 kW

电流消耗

16 A

最大输送压力

3,1 bar

泵最大输送流量（压力）

65 L/min

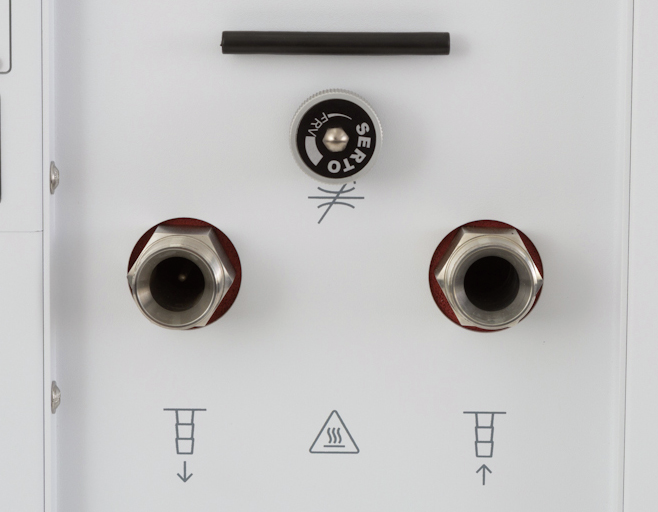

输入/输出连接螺纹（外部）

M30 x 1,5

输入/输出软管尺寸

3/4″

最小灌注容积

4.8 L

最大灌注容积

17.2 L

尺寸（宽x深x高）

560 x 550 x 1325 mm

重量

177 kg

声压级

66 dB(A)

电源供应

400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz

电源插头

带插头的电源线（IEC 60309，5 极，CEE，红色，16 A）

温度	泵级	回火介质	冷却能力 50 赫兹	冷却能力 60 赫兹
200 °C	8	传热油	5 kW	5 kW
100 °C	8	传热油	5 kW	5 kW
20 °C	8	乙醇	5 kW	5 kW
10 °C	8	乙醇	4.8 kW	4.8 kW
0 °C	8	乙醇	4.6 kW	4.6 kW
-10 °C	8	乙醇	3.3 kW	3.3 kW
-20 °C	4	乙醇	2.3 kW	2.3 kW
-30 °C	4	乙醇	1.2 kW	1.2 kW
-40 °C	4	乙醇	0.5 kW	0.5 kW
-50 °C	2	乙醇	0.1 kW	0.1 kW

数据表 Integral IN 550 XT

下载 - 一般产品数据

设备	设备类别	文件类型	语言	格式	尺寸
Integral XT New Generation	工艺过程温控器	产品说明手册	中文	PDF	3,09 MB	下载文档
LAUDA Command App	工艺过程温控器	软件	中文	EXE	65,35 MB	下载文档
