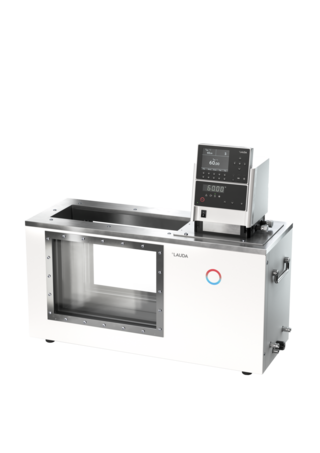

加热恒温器 Proline PVL 24 C

Proline PVL 24 C

LAUDA Proline 透视恒温器拥有两台不同的控制单元。主控制型号设计适用于无需如此频繁更改参数的所有应用。可拆卸命令控制单元具有图形 LCD 屏幕，确保高度的操作舒适性，同时还额外提供程序生成器。

订购编号: L001555

咨询产品

返回至概览加热恒温器

性能特征

Thermostatic bath/circulator with latest microprocessor technology and many functions for programming and information and installed cooling coil

Input either via cursor keys, numeric soft keys or both. Additional Tmax key for overtemperature

SelfCheck Assistant for system diagnosis

Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids

Option for upgrading with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet-USB module)

Measuring chamber with 4 layers of special insulating glass for low temperatures down to -60 °C

Back-lit graphic LCD display with high resolution and different display modes

Command console can be detached and used as remote control

Fully electronic continuous controller with PID action for internal & external control

LAUDA Varioflex pump (pressure) with 8 selectable levels

Programmer with 150 temperature/time segments that can be separated into 5 programs

Pump connectors on the side and in the back, installed bypass

Additional green LED display for temperature

EasyUse system for simple operation of the whole unit

PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system

Optically decoupled RS 232/485 interface integrated as a standard

Timer function for switching on the thermostat, entering the standyby mode or running of programs

Bath vessel made of stainless steel (insulated, with handles and drain tap)

工作范围

最小工作温度

30 °C

最大工作温度

100 °C

温度稳定性

0.01 ± K

技术特征

工作温度范围

30 ... 100 °C

包括水冷却装置的工作温度范围

20 ... 100 °C

运行温度范围

-60 ... 100 °C

环境温度范围

5 ... 40 °C

温度稳定性

0.01 ± K

最大加热功率

2.9 kW

电流消耗

13 A

最大功率消耗

3 kW

最大输送压力

0,8 bar

泵最大输送流量（压力）

25 L/min

最小/最大浴槽容积

19,0 / 24,0 L

尺寸（宽x深x高）

740 x 282 x 646 mm

重量

46 kg

电源供应

230 V; 50/60 Hz

电源插头

带折角插头的电源线 (BS1363)
