Features

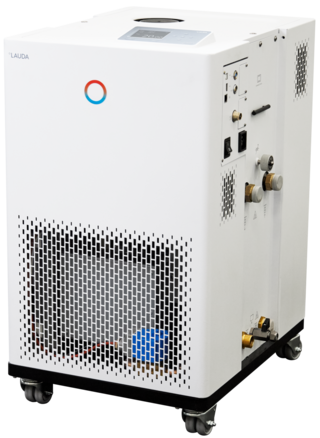

High-temperature process thermostat for dynamic temperature control within external circuits
Management of heat transfer liquids with stored properties
Fully electronic continuous controller with PID action for internal & external control
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Port for external Pt100 integrated, second external Pt100 feasible via interface module
Integrated and adjustable bypass
Digital display of pump pressure
Cooling water supply necessary during operation
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Self adapt function for determination of control parameters
Powerful LAUDA Variopump (pressure pump) with 8 selectable output levels or control of outflow pressure
Remote fault indication through floating contact
Programmer with 150 temperature/time segments that can be separated into 5 programs
Integrated web server for browser based operation in local area networks via PC, tablet or smart phone, secure data transfer due to authentication procedure and encryption
Clear text menu navigation, six selectable languages DE, EN, FR, ES, IT, RU
SelfCheck Assistant for system diagnosis
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
USB and Ethernet interface equipped as standard
Option for upgrading up to 2 additional interfaces (RS 232/485, Profibus, analogue, contact or EtherCAT module)
Very small internal volume and big non-thermostated expansion vessel (cold fluid layer system)
Water cooled system
Working range
Min. working temperature
25 °C
Max. working temperature
320 °C
Temperature stability
0.1 ± K
Technical data (according to DIN 12876)
Working temperature range
25 ... 320 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.1 ± K
Heater power max.
3.5 kW
Max. power consumption
3.7 kW
Current consumption
16 A
Max. discharge pressure
3,1 bar
Max. pump flow pressure
60 L/min
In / Outlet connection thread (outside)
M30 x 1,5
Inlet/outlet hose size
3/4″
Min. filling volume
3.3 L
Max. filling volume
9.5 L
Water cooling connection thread (inside)
3/4 ″
Recommended cooling water temperature
15 °C
Cooling Water Temperature Max
30 °C
Cooling water flow rate
11 L/min
Pressure difference cooling water min.
3 bar
Maximum_Pressure_Cooling_Water
10 bar
Dimensions (WxDxH)
430 x 550 x 760 mm
Weight
52 kg
Noise level
52 dB(A)
Power supply
230 V; 50 Hz
Power plug
Power cord with angled plug (CEE7/7)
| Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz |
|---|---|---|---|
| 300 °C | 8 | Thermal oil | 17 kW |
| 200 °C | 8 | Thermal oil | 17 kW |
| 150 °C | 8 | Thermal oil | 17 kW |
| 100 °C | 8 | Thermal oil | 10 kW |
| 50 °C | 8 | Thermal oil | 2 kW |
