Features
Thermostatic circulator with latest microprocessor technology. Integrated cooling system
Command console can be detached and used as remote control
Timer und count-down-function
SelfCheck Assistant for system diagnosis
Fully electronic continuous controller with PID action for internal & external control
Tower design with small footprint
Bath vessel made of stainless steel (insulated, with overflow and drain tap)
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Large 5,7" Multi-Touch-Color display
User administration for up to 20 user
EasyUse system for simple operation of the whole unit

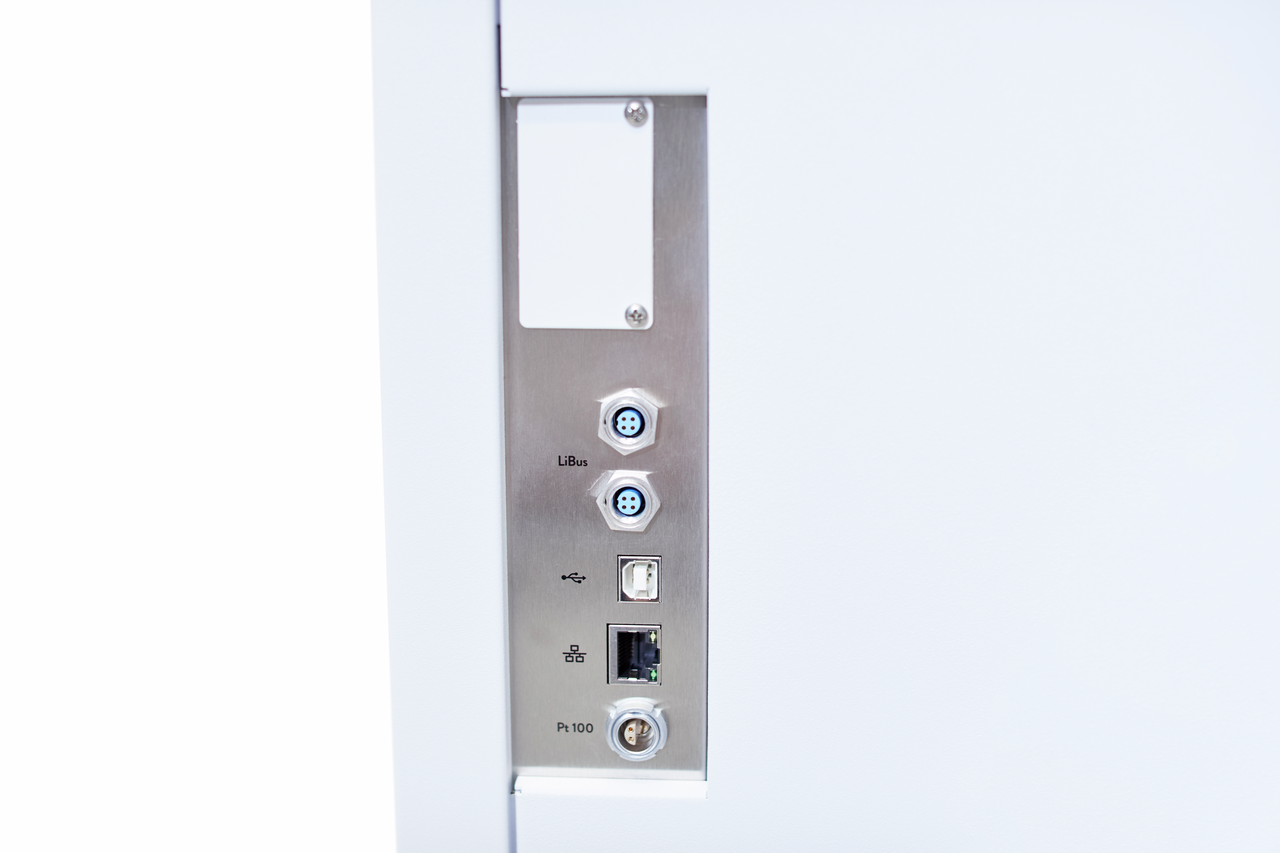

USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, connections rear
SmartCool system for energy-saving digital cooling management including compressor on-off control
Operation with multi touch display
Data in- and export via USB
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Programmer with up to 100 programs, up to 50 segments each
Low filling volume enables rapid changes in temperature
Hybrid cooling system: (heat removal complementary with cooling water)
Working range
Min. working temperature
-45 °C
Max. working temperature
200 °C
Temperature stability
0.05 ± K
Technical data (according to DIN 12876)
Working temperature range
-45 ... 200 °C
Operating temperature range
-45 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
2.5 kW
Max. power consumption
3.7 kW
Current consumption
16 A
Max. discharge pressure
0,7 bar
Pump_suction
0,4 bar
Max. pump flow pressure
22 L/min
In / Outlet connection thread (outside)
M16 x 1
In / Outlet Ø olives
13 mm

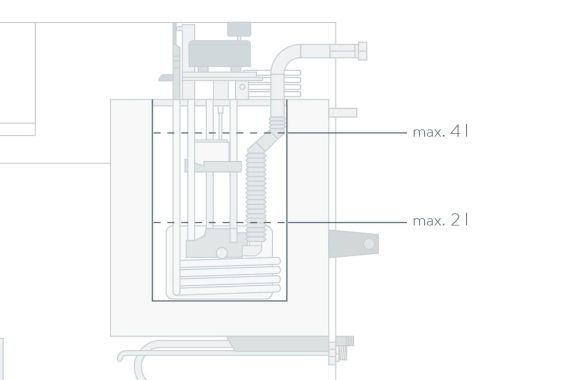

Min. filling volume
2.4 L
Max. filling volume
4.4 L
Dimensions (WxDxH)
300 x 430 x 675 mm
Weight
39 kg
Power supply
230 V; 50 Hz
Power plug
Power cord with angled plug (CEE7/7)
| Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz |
|---|---|---|---|
| 20 °C | 8 | Ethanol | 0.8 kW |
| 10 °C | 8 | Ethanol | 0.8 kW |
| 0 °C | 8 | Ethanol | 0.8 kW |
| -10 °C | 8 | Ethanol | 0.53 kW |
| -20 °C | 4 | Ethanol | 0.34 kW |
| -30 °C | 4 | Ethanol | 0.15 kW |
| -35 °C | 4 | Ethanol | 0.09 kW |
| -40 °C | 4 | Ethanol | 0.04 kW |
| -45 °C | 2 | Ethanol | 0.01 kW |
