Microcool MC 600

The compact circulation chiller MC 250 and MC 350 fit effortlessly on a lab bench. Somewhat larger models are also available having 600 and 1200 watts of cooling capacity and which can be positioned on the floor under a lab bench to save space.

Order no.: L001048
Inquire about product
Back to overview Circulation chillers

Features

Circulation chiller
Fully electronic continuous controller

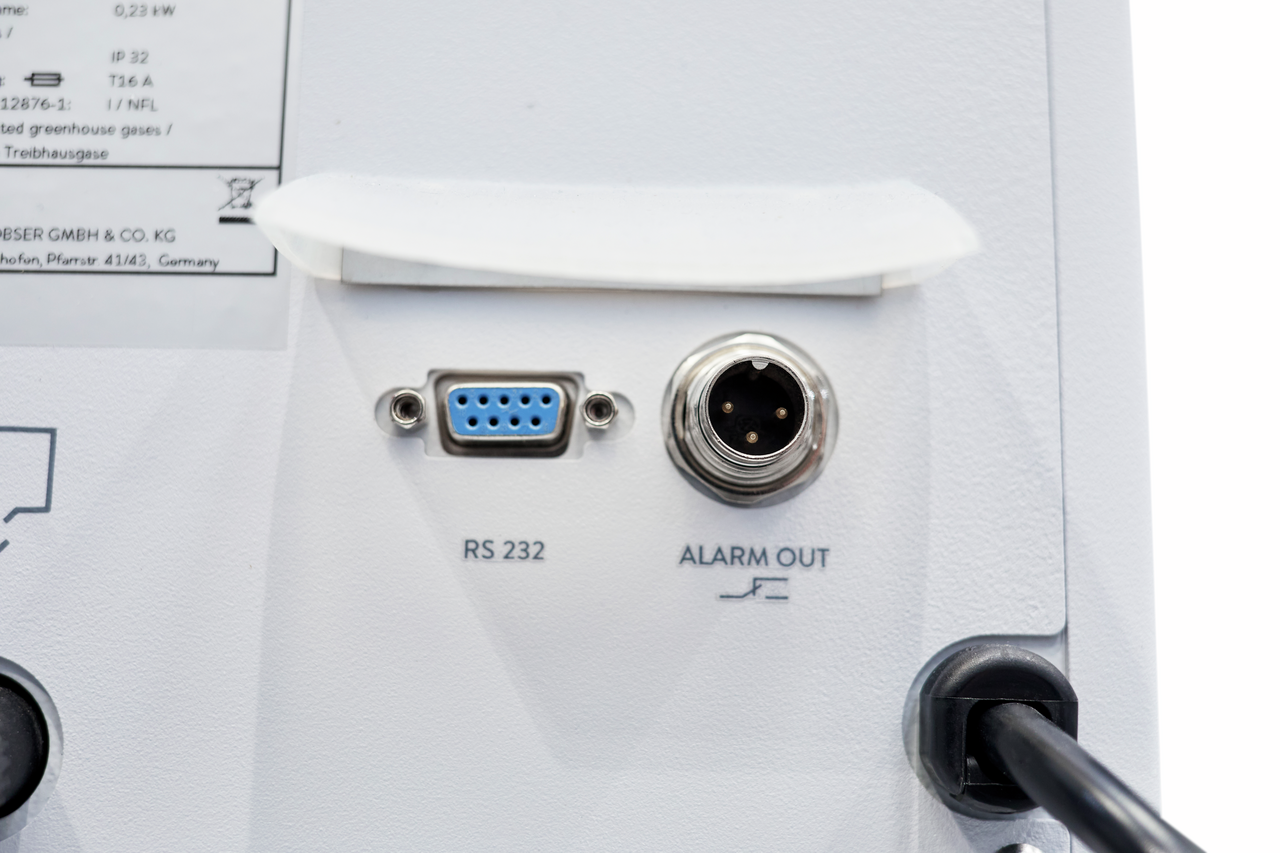

RS 232 interface
Adjustable bypass for pressure limiting
Operates with non flammable liquids (water,water/glycol)

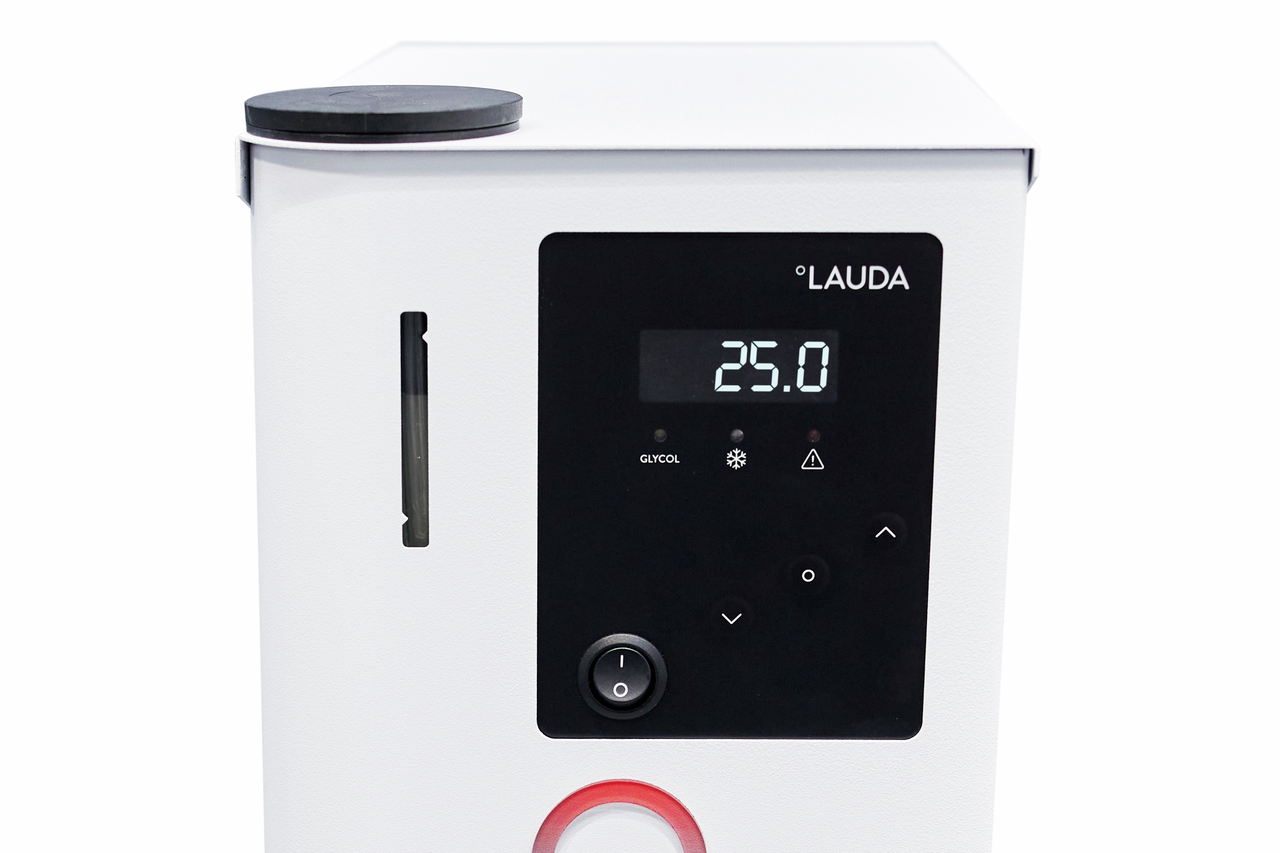

1-line LED display for display of actual or set temperature
Temperature protection for the pump windings, lighted level indication and low level alarm
Auto-Start-Timer and Auto-Shut-Down function
Cooling capacity adjustment by solenoid valve control including compressor on-off control
User-friendly menu guidance with simplest 3-key operation
Magnetically coupled block pump
Filler opening on top, outlet connection on the backside
Condenser cooling Air

Working range

Min. working temperature

-10 °C

Max. working temperature

40 °C

Temperature stability

0.5 ± K

Technical data (according to DIN 12876)

Working temperature range
-10 ... 40 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.5 ± K
Max. discharge pressure
1,3 bar
Max. pump flow pressure
35 L/min
In / Outlet connection thread (outside)
G 3/4"
Min. filling volume
4 L
Max. filling volume
8 L
Dimensions (WxDxH)
350 x 480 x 595 mm
Weight
50 kg
Noise level
57 dB(A)
Net weight
50 kg
Max. power consumption
0.7 kW
Current consumption
4 A
Power supply
230 V; 50 Hz
Power plug
Power cord with angled plug (CEE7/7)
TemperatureTempering mediumCooling capacity 50 Hz
20 °CEthanol0.6 kW
10 °CEthanol0.5 kW
0 °CEthanol0.36 kW
-10 °CEthanol0.15 kW
Download Data sheet Microcool MC 600

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Microcool Circulation chillers Operating instruction
English
PDF 2,48 MB Download document Download document
Chapter Circulation chillers
Overall brochure 		Circulation chillers Brochure
English
PDF 1,59 MB Download document Download document

Accessories

Rubber tube 3/4", Fiber strengthened
EPDM Tubing 12 mm, insulated 9 mm
Please use the LAUDA accessories finder for additional accessories.
