The compact circulation thermostat for external applications from 4 to 80 °C
Cooling output from 0.12 kW to 0.25 kW
Heating output from 0.2 kW to 0.4 kW
Professional temperature control for realistic test processes with the pressure-superimposed Integral P process thermostats
Cooling output from 20 kW to 28 kW
Heating output from 16 kW to 24 kW
Water/glycol mixtures

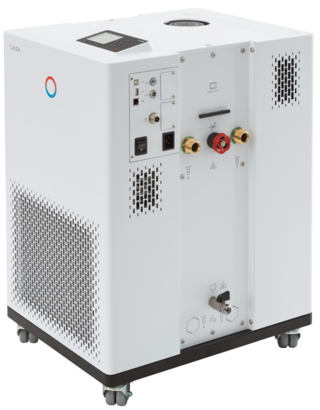

The new generation of Integral T process thermostats for professional external temperature control from -30 to 150 °C
Cooling output from 1.4 kW to 19 kW
Heating output from 2.2 kW to 16 kW
Water/glycol mixtures and oils

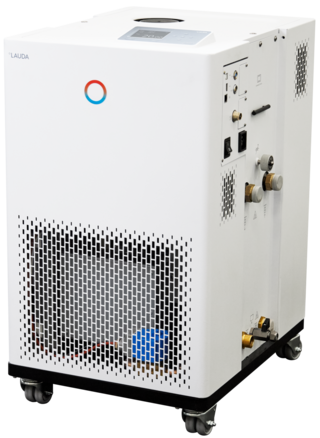

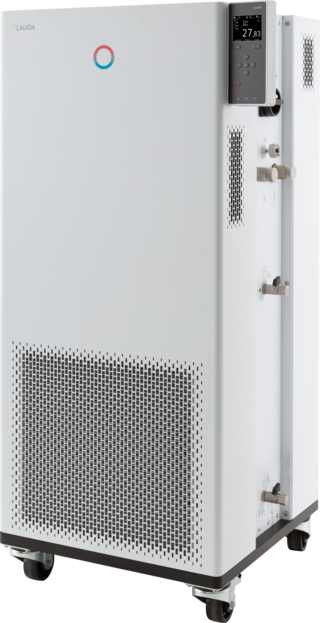

The new generation of successful Integral XT process thermostats for professional temperature control in the temperature range from -90 to 320 °C
Cooling output from 1.5 kW to 28 kW
Heating output from 2.8 kW to 24 kW
Water/glycol mixtures and oils
Compact circulation thermostats for professional temperature control thermostating from -90 to 250 °C
Cooling output from 0.6 kW to 1.5 kW
Heating output from 1.3 kW to 2.5 kW
Thermo-electric process thermostats for the semiconductor industry from -20 to 90 °C
Cooling output from 1.2 kW to 4.4 kW
Heating output from 3 kW to 12 kW
High-performance temperature control for biotechnology and pharmaceutical engineering from -5 to 60 °C
Cooling output from 30.3 kW to 55.6 kW
Heating output from 35 kW to 50 kW

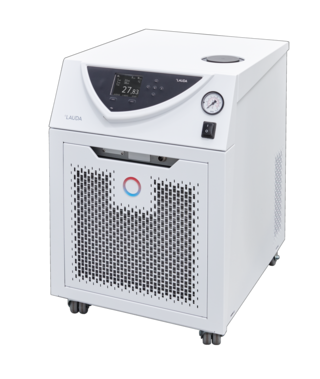

Variable process thermostats from 1200 W to 10 kW from -20 to 80 °C for the dissipation of process heat in laboratory, miniplant and production
Cooling output from 1 kW to 10 kW
Heating output from 1 kW to 7.5 kW
Select the desired working temperature, product line, or type of heat discharge to narrow down the list
| Product | Min. working temp | Max. working temp | Heater power max. | Cooling output at 20 °C 60 Hz | Compare product |
|---|---|---|---|---|---|
| Integral IN 4 XTW | 25 °C | 320 °C | 3.3 kW | 2 kW | |
| Integral IN 8 XTW | 25 °C | 320 °C | 8 kW | 2 kW | |
| Integral IN 130 T | -30 °C | 120 °C | 2.7 kW | 1.4 kW | |
| Integral IN 150 XT | -45 °C | 220 °C | 3.3 kW | 1.5 kW | |
| Integral IN 230 T | -30 °C | 120 °C | 2.7 kW | 2.2 kW | |
| Integral IN 230 TW | -30 °C | 120 °C | 2.7 kW | 2.3 kW | |
| Integral IN 250 XTW | -45 °C | 220 °C | 3.4 kW | 2.1 kW | |
| Integral IN 280 XT | -80 °C | 220 °C | 4 kW | 1.6 kW | |
| Integral IN 280 XTW | -80 °C | 220 °C | 4 kW | 1.7 kW | |
| Integral IN 530 T | -30 °C | 120 °C | 8 kW | 5 kW | |
| Integral IN 530 TW | -30 °C | 120 °C | 8 kW | 6 kW | |
| Integral IN 550 XT | -50 °C | 220 °C | 8 kW | 5 kW | |
| Integral IN 550 XTW | -50 °C | 220 °C | 8 kW | 5.8 kW | |
| Integral IN 590 XTW | -90 °C | 220 °C | 8 kW | 4.5 kW | |
| Integral IN 750 XT | -45 °C | 220 °C | 8 kW | 7 kW | |
| Integral IN 950 XTW | -50 °C | 220 °C | 8 kW | 9.5 kW | |
| Integral IN 1030 T | -30 °C | 150 °C | 8 kW | 11 kW | |
| Integral IN 1330 TW | -30 °C | 150 °C | 16 kW | 13 kW | |
| Integral IN 1590 XTW | -90 °C | 220 °C | 12 kW | 18.5 kW | |
| Integral IN 1830 TW | -30 °C | 150 °C | 16 kW | 19 kW | |
| Integral IN 1850 XTW | -50 °C | 220 °C | 16 kW | 20 kW | |
| Integral IN 2050 PW | -40 °C | 140 °C | 16 kW | 20 kW | |
| Integral IN 2560 PW | -40 °C | 140 °C | 24 kW | 28 kW | |
| Integral IN 2560 XTW | -60 °C | 220 °C | 24 kW | 28 kW | |
| LOOP L 100 | 4 °C | 80 °C | 0.2 kW | 0.12 kW |
Answer a few questions and we will provide you with an individual temperature control solution in the next step.
