Variocool product line

Process thermostats from -25 to 80°C

Variocool product line

A comprehensive performance spectrum enables the LAUDA Variocool to deal with sophisticated process temperature control in the moderate temperature range. Equipment incorporating various pumps and individual expansion with interface modules, including the option of external temperature control, allow optimized adaptation to changing requirements in the process environment.
Inquire about product line

Process thermostats from -25 to 80°C

Overview of all Variocool devices

Product line

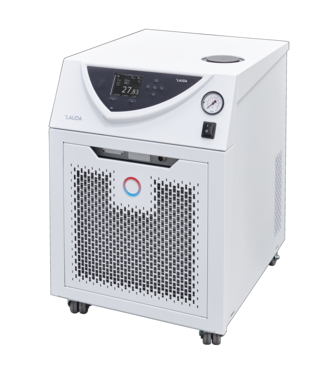

Variocool Process thermostats

Variocool Process thermostats

Variable process thermostats from 1200 W to 10 kW from -20 to 80 °C for the dissipation of process heat in laboratory, miniplant and production

Cooling output from 1 kW to 10 kW

Heating output from 1 kW to 7.5 kW

-100
-50
0
50
100
150
200
250
300
-25 to 80 °C

Variocool Process thermostats

DO YOU NEED ADDITIONAL INFORMATION OR DO YOU HAVE QUESTIONS?


International Area Sales

+49 9343 503-555
E-Mail

Overview of all device types

Select the desired working temperature or type of heat discharge to narrow down the list

Working temperature (°C)

Heat discharge
ProductMin. working tempMax. working tempHeater power max.Cooling output at 20 °C 60 HzMax. discharge pressure 60 HzCompare product
Variocool VC 1200 -20 °C 80 °C 2.1 kW 1.2 kW 0.9 bar
Variocool VC 1200 -20 °C 80 °C 2.1 kW 1 kW 4.8 bar
Variocool VC 1200 -20 °C 80 °C 2.1 kW 1.12 kW 3.2 bar
Variocool VC 1200 W -20 °C 80 °C 2.1 kW 1 kW 4.8 bar
Variocool VC 1200 W -20 °C 80 °C 2.1 kW 1.12 kW 3.2 bar
Variocool VC 1200 W -20 °C 80 °C 2.1 kW 1.2 kW 0.9 bar
Variocool VC 2000 -20 °C 80 °C 2.1 kW 1.8 kW 4.8 bar
Variocool VC 2000 -20 °C 80 °C 2.1 kW 1.92 kW 3.2 bar
Variocool VC 2000 -20 °C 80 °C 2.1 kW 2 kW 0.9 bar
Variocool VC 2000 W -20 °C 80 °C 2.1 kW 1.92 kW 3.2 bar
Variocool VC 2000 W -20 °C 80 °C 2.1 kW 2 kW 0.9 bar
Variocool VC 3000 -20 °C 80 °C 1.3 kW 2.8 kW 4.8 bar
Variocool VC 3000 -20 °C 80 °C 1.3 kW 3 kW 3.2 bar
Variocool VC 3000 W -20 °C 80 °C 1.3 kW 2.8 kW 4.8 bar
Variocool VC 3000 W -20 °C 80 °C 1.3 kW 3 kW 3.2 bar
Variocool VC 5000 -20 °C 80 °C 4.1 kW 4.65 kW 5 bar
Variocool VC 5000 -20 °C 80 °C 4.1 kW 5 kW 3.2 bar
Variocool VC 5000 W -20 °C 80 °C 4.1 kW 4.65 kW 5 bar
Variocool VC 5000 W -20 °C 80 °C 4.1 kW 5 kW 3.2 bar
Variocool VC 7000 -25 °C 80 °C 4.1 kW 6.65 kW 5 bar
Variocool VC 7000 -25 °C 80 °C 4.1 kW 7 kW 3.2 bar
Variocool VC 7000 W -25 °C 80 °C 4.1 kW 6.65 kW 5 bar
Variocool VC 7000 W -25 °C 80 °C 4.1 kW 7 kW 3.2 bar
Variocool VC 10000 -25 °C 80 °C 6.9 kW 9.65 kW 5 bar
Variocool VC 10000 -25 °C 80 °C 6.9 kW 10 kW 3.2 bar
Variocool VC 10000 W -25 °C 80 °C 6.9 kW 9.65 kW 5 bar
Variocool VC 10000 W -25 °C 80 °C 6.9 kW 10 kW 3.2 bar
  • 1
  • 2

Applications and industry examples for LAUDA thermostats

Biotechnology

Biotechnology

Temperature control is essential when it comes to the quality of research and production results.

To the application example
Pharmaceutical industry

Pharmaceutical industry

In the pharmaceutical industry, temperature control processes range from research to production scale.

To the application example
Chemical industry

Chemical industry

Process technology and reactor temperature control are typical areas where thermostats are required.

To the application example
