LOOP L 100

The L 100 and L 250 air-cooled device types achieve a cooling capacity of 120 and 250 watt. The devices are primarily for use at constant temperatures with low power requirements. Both device types are especially energy-efficient and silent in partial-load operation.

Order no.: L002014
Inquire about product
Back to overview Circulation and process thermostats

Features

Easy to use recirculation thermostat with integrated cooling system
Facile 3-key user interface
Operates with non flammable liquids (water,water/glycol)
Air cooled system

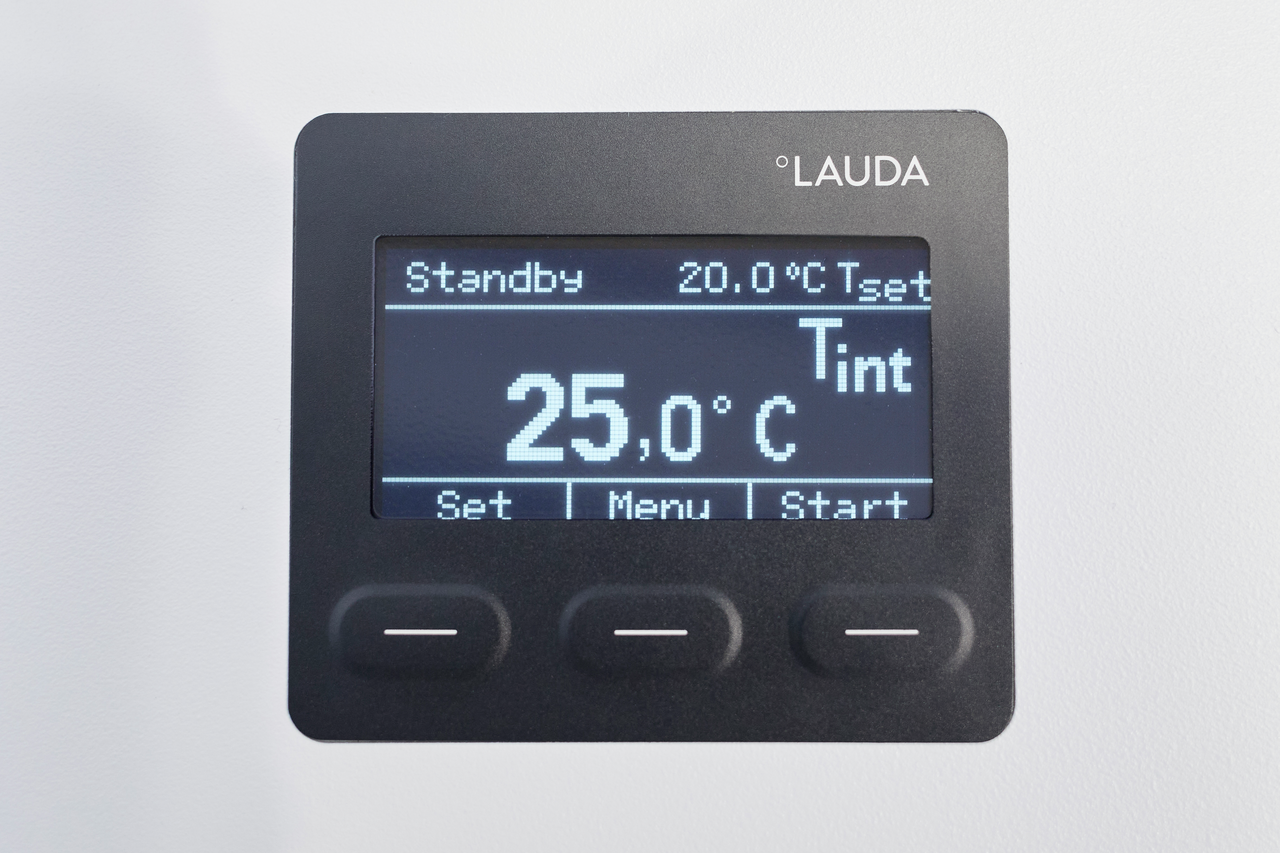

Bright and high-contrast graphic OLED display

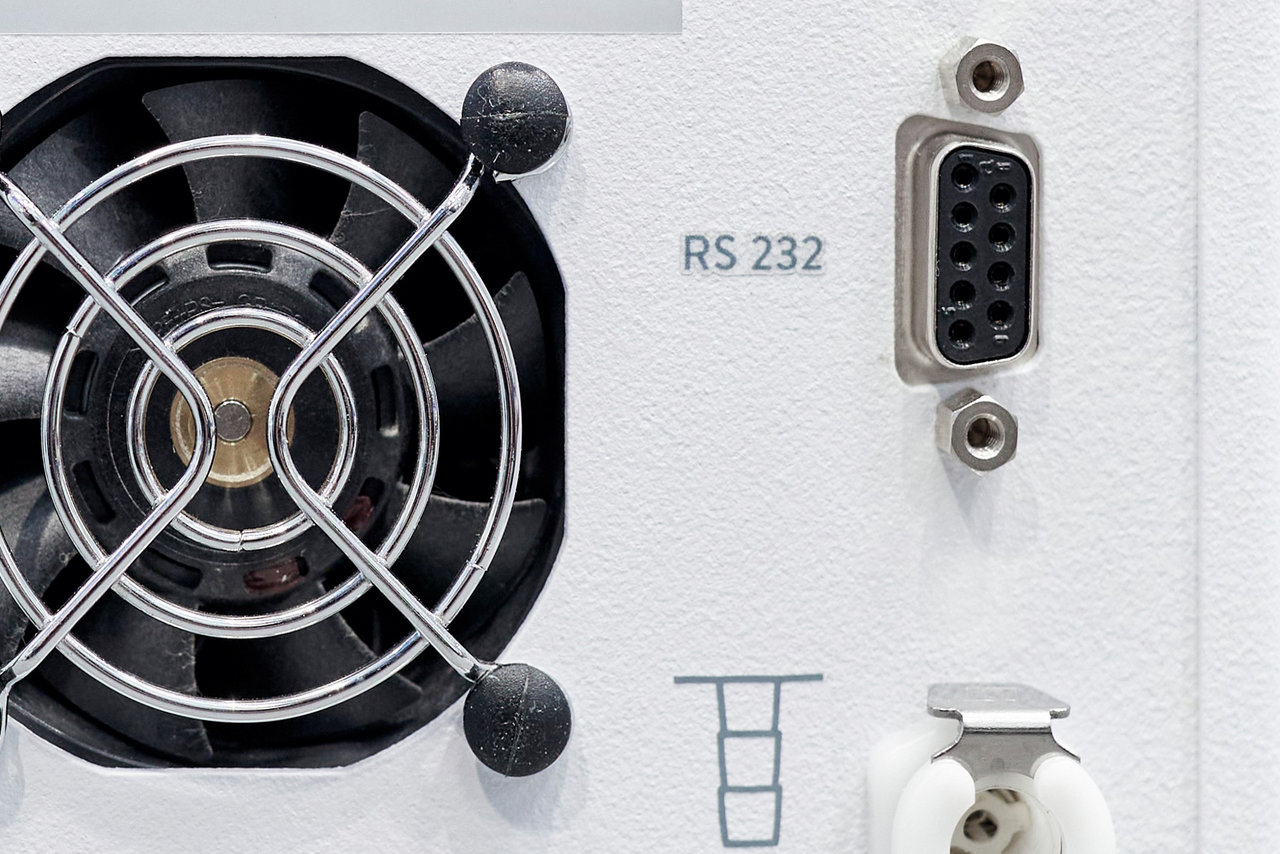

RS 232 interface
Quiet and low vibration level operation due to refrigerant free cooling technology
User friendly menu navigation in plain language
Pump connectors with fast couplings for simple change of applications
Compact overall size and low weight

Working range

Min. working temperature

4 °C

Max. working temperature

80 °C

Temperature stability

0.1 ± K

Technical data (according to DIN 12876)

Working temperature range
4 ... 80 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.1 ± K
Heater power max.
0.2 kW
In / Outlet connection thread (outside)
Quick C. 1/4″
Max. filling volume
0.28 L
Dimensions (WxDxH)
175 x 301 x 266 mm
Weight
6 kg
Noise level
57 dB(A)
Net weight
6.4 kg
Max. power consumption
0.24 kW
Max. discharge pressure
0,8 bar
Max. pump flow pressure
3 L/min
Power supply
100-240 V; 50/60 Hz
Power plug
Power cord with angled plug (BS1363)
TemperatureTempering mediumCooling capacity 50 HzCooling capacity 60 Hz
20 °CEthanol0.12 kW0.12 kW
10 °CEthanol0.06 kW0.06 kW
Download Data sheet LOOP L 100

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
LOOP Circulation thermostats Operating instruction
English
PDF 3,52 MB Download document Download document
Chapter Circulation and process thermostats
Overall brochure 		Circulation thermostats Brochure
English
PDF 4,84 MB Download document Download document

Accessories

Silicone tube D.i. 6 x1 mm wall thickness
Silicone tube D.i. 6 x1 mm wall thickness
Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
