Alpha Heating thermostats
Heating thermostats from 25 to 100 °C for cost-effective temperature control thermostating in the lab
Request advising
Back to overview Heating thermostats

Heating thermostats from 25 to 100°C for cost-effective temperature control in the lab

Inexpensive thermostats with reliable technology and state-of-the-art designs. LAUDA Alpha is the most cost-effective choice in the range of high-quality LAUDA thermostats.

These reliable and user-friendly thermostats, with features reduced to the essentials, can be operated with non-flammable liquids and are suitable for both internal and, with a pump kit, also external temperature control tasks.

Cooling coils and pump circulation sets and bath cover sets are available as accessories for all thermostats.

Overview

Benefits and added value

  • Deep-drawn stainless steel bath vessels
  • Easy, clear menu guidance thanks to 3-button operation with LED display
  • Integrated timer function allows automatic device shutdown (standby)
  • Low-level and overtemperature protection for operation with non-flammable liquids

Working range

The heating thermostats A 6, A 12 and A 24 work in the temperature range between 25 and 100°C. Cooling coil, pump circulation set and bath cover set are available as accessories for all thermostats.

Min. working temperature

Min. working temperature

25 °C

Max. working temperature

Max. working temperature

100 °C

Temperature stability

Temperature stability

0.05 ± K

Product lines

Select up to 4 technical parameters that you want to display in the table

ProductMin. working tempMax. working tempHeater power max.Integrated interfacesCompare product
Alpha A 6 25 °C 100 °C 1.5 kW No Details
Alpha A 12 25 °C 100 °C 1.5 kW No Details
Alpha A 24 25 °C 100 °C 1.5 kW No Details

Device dimensions

332 x 535 x 420 mm

Alpha A 24

270 x 332 x 420 mm

Alpha A 12

181 x 332 x 370 mm

Alpha A 6

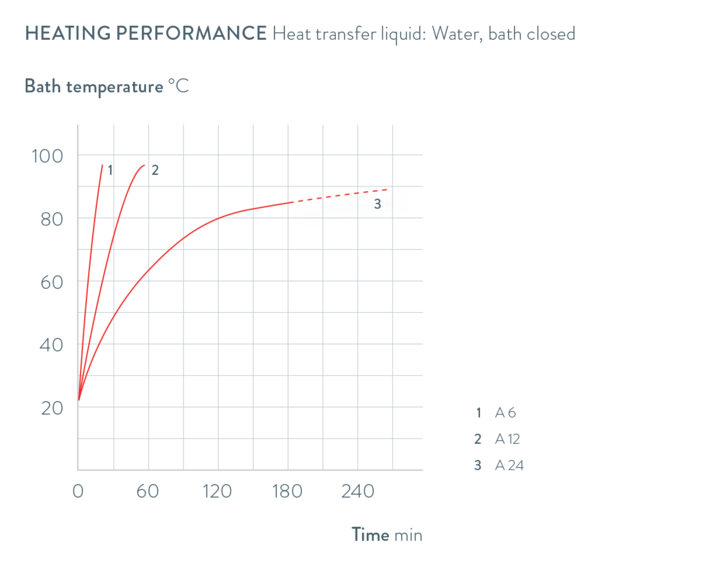

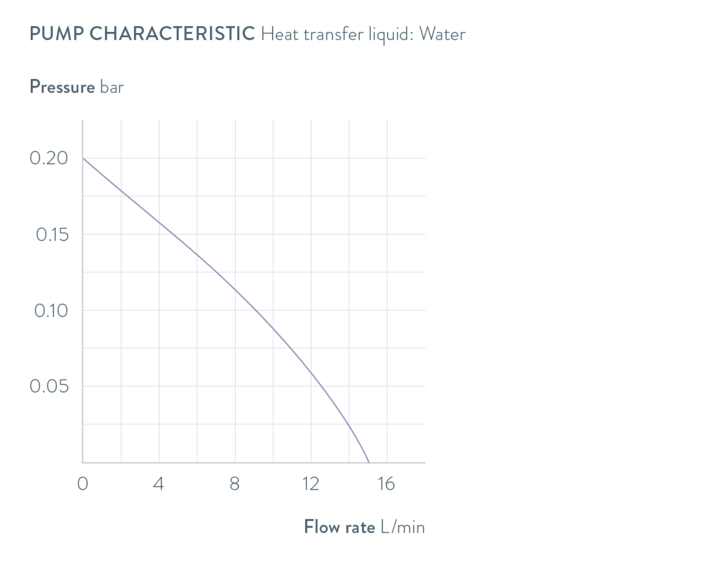

Characteristics

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Chapter Cooling thermostats
Overall brochure 		Bath thermostats Brochure
English
PDF 2,6 MB Download document Download document
Chapter Heating thermostats
Overall brochure 		Bath thermostats Brochure
English
PDF 3,35 MB Download document Download document
Alpha (new design) Immersion thermostats Operating instruction
English
PDF 2,53 MB Download document Download document
Alpha (new design) Bath thermostats Operating instruction
English
PDF 2,53 MB Download document Download document
Alpha Immersion thermostats Operating instruction
English
PDF 1,17 MB Download document Download document
Alpha Bath thermostats Operating instruction
English
PDF 1,17 MB Download document Download document

Accessories

Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
