Hydro Shaking water baths
Water baths from 10 to 99.9 °C for the lab
Request advising
Back to overview Shaking water baths

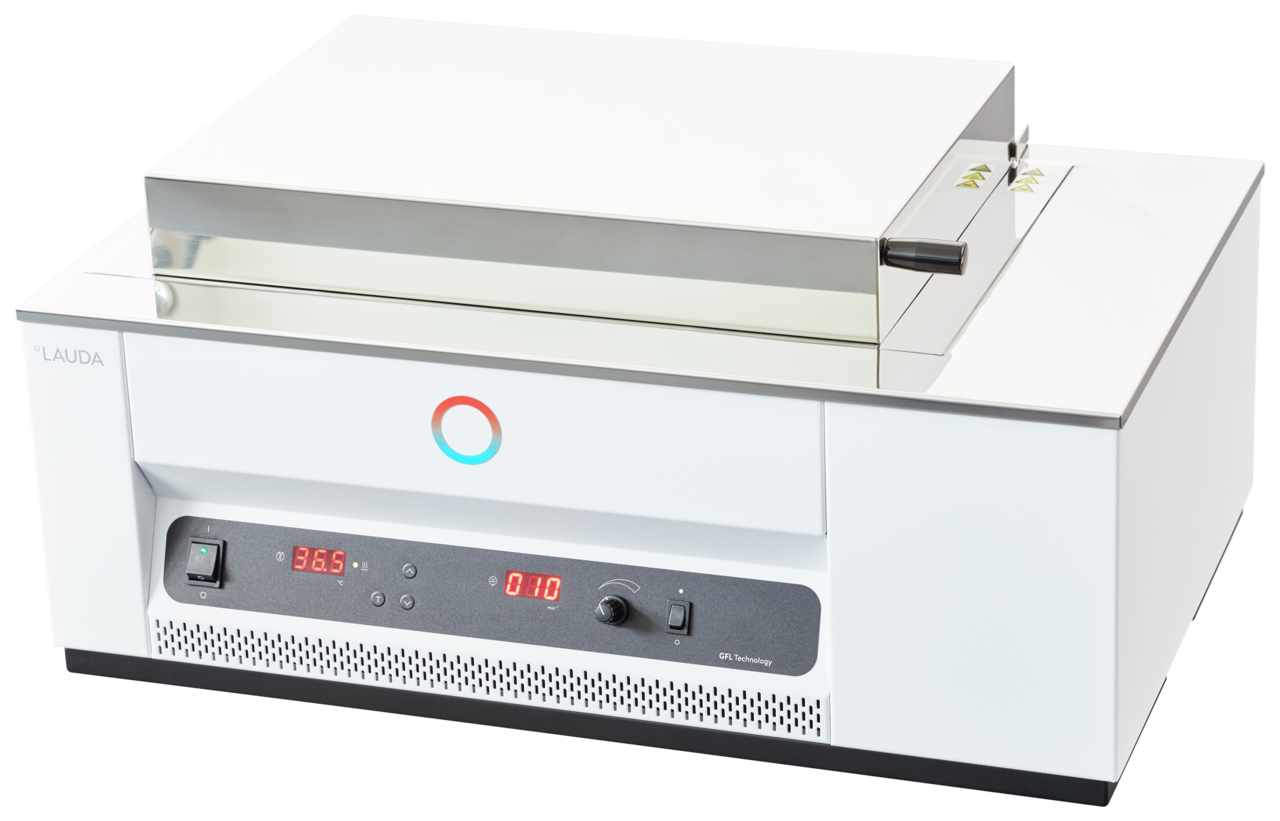

Shaking water baths for temperature control from 10 to 99.9 °C

The shaking water baths of the LAUDA Hydro series can be used for a variety of tasks in the laboratory depending on requirements. The device type H 20 SOW creates a circular motion for the sample whereas the types H 20 S and H 20 SW are designed for a linear, oscillating shaking movement.

The built-in speed controller enables a load-independent, infinitely variable shaking movement with a soft start. The two shaking water baths H 20 SW and H 20 SOW are equipped with a cooling coil as standard.

The temperature range of the shaking water baths can be extended down to 10°C by connecting them to the domestic water supply or to commercially available circulation chillers, such as the LAUDA Microcool. With practical drain tap on the rear.

Overview

Benefits and added value

  • Digital temperature setting and indication via LED display
  • Load-independent, continuously variable shaking device with a soft start
  • Electronic function monitoring of the temperature controller, two independent under and overtemperature protection devices
  • Bath body, cover frame with condensation channel, shaking basket and heater made of stainless steel

Working range

The built-in speed controller of LAUDA Hydro shaking water baths allows a load-independent, infinitely adjustable shaking movement with a smooth start-up. The two shaking water baths H 20 SW and H 20 SOW are equipped with a cooling coil as standard. The temperature range of the shaking water baths can be extended downwards to up to 10 °C by connecting them to the domestic water supply or to commercially available circulating coolers.

Min. working temperature

Min. working temperature

25 °C

Max. working temperature

Max. working temperature

99.9 °C

Temperature stability

Temperature stability

0.1 ± K

Product lines

Select up to 4 technical parameters that you want to display in the table

ProductMin. working tempMax. working tempHeater power max.Min. / max. bath volumeCompare product
Hydro H 20 S 25 °C 99.9 °C 1.5 kW 9.0 / 24.4 L Details
Hydro H 20 SOW 25 °C 80 °C 1.5 kW 8.5 / 23.1 L Details
Hydro H 20 SW 25 °C 99.9 °C 1.5 kW 9.0 / 24.4 L Details

Device dimensions

715 x 520 x 330 mm

Hydro H 20 SW

Hydro H 20 S

635 x 505 x 400 mm

Hydro H 20 SOW

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Hydro Water baths Water baths Brochure
English
PDF 812,32 kB Download document Download document
Chapter Water baths
Overall brochure 		Water baths Brochure
English
PDF 2,28 MB Download document Download document
Hydro Tissue float bath Water baths Operating instruction
English
PDF 669,19 kB Download document Download document
Hydro Evaporation water baths Water baths Operating instruction
English
PDF 854,72 kB Download document Download document
Hydro Shaking water baths Water baths Operating instruction
English
PDF 1,06 MB Download document Download document
Hydro Water baths Water baths Operating instruction
English
PDF 1,45 MB Download document Download document

Accessories

Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
