Puridest PD 4 R

LAUDA Puridest stills do not require any specialists for commissioning and maintenance and do not place any high demands on the raw water that is to be connected. Ultra-pure water is extracted by simply pressing a button.

Order no.: L003014
Inquire about product
Back to overview Water stills for single distillation

Features

Water Still for single distillation (fully automatic) with storage tank, suitable for both bench and wall mounting
Condenser (cooling coil) inside the storage tank, easily exchangeable.
Water saving through automatic water cut-off. Unnecessary water consumption will be avoided.

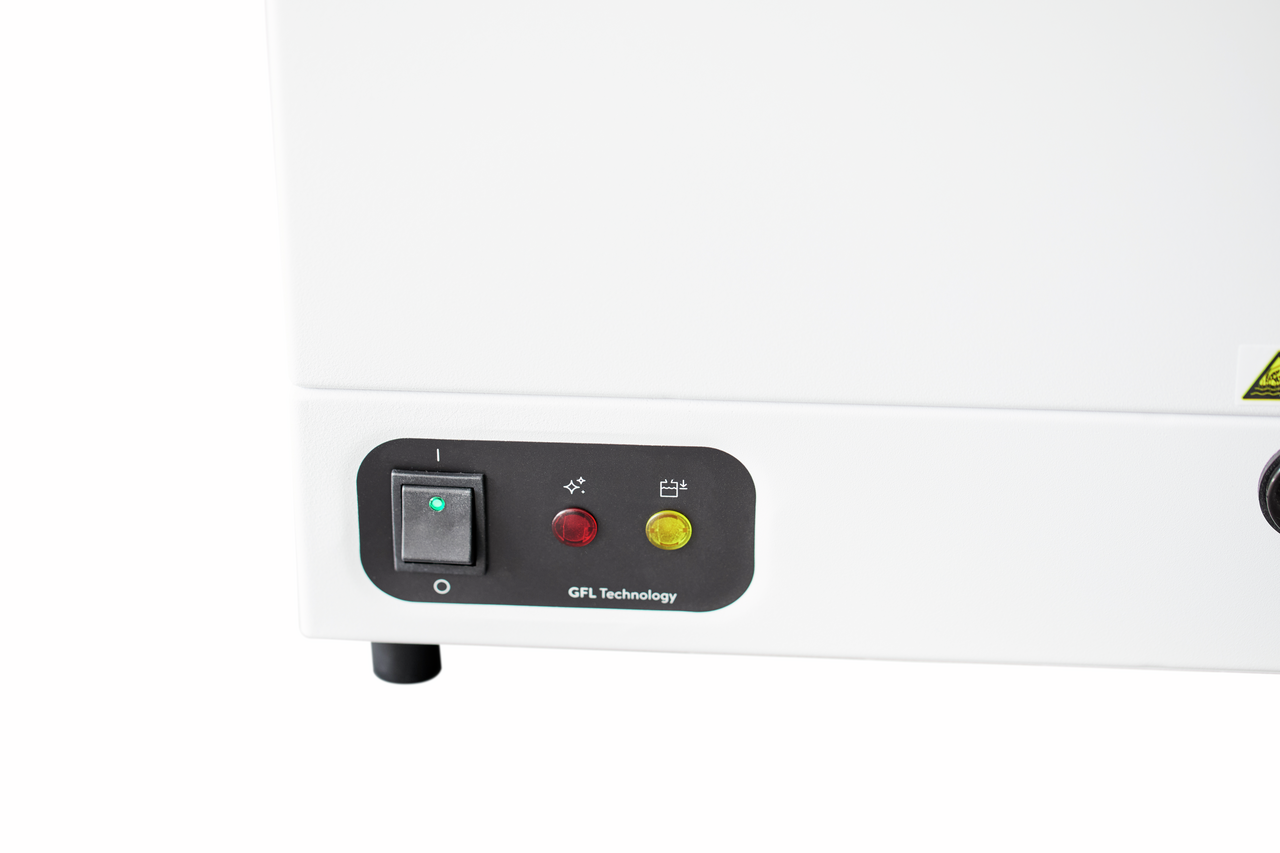

Electronic contamination monitoring of the still with distillation stop and visual cleaning instruction
Heating element, evaporator, storage tank and condenser made of stainless steel.
The distillate storage tank accepts twice the hourly capacity of the still
Solenoid valve to control the water supply
Evaporator easily accessible for cleaning purposes.
Automatic refill of the storage tank after distillate removal, controlled by electronic level detection
Housing made of galvanised sheet steel, powder coated

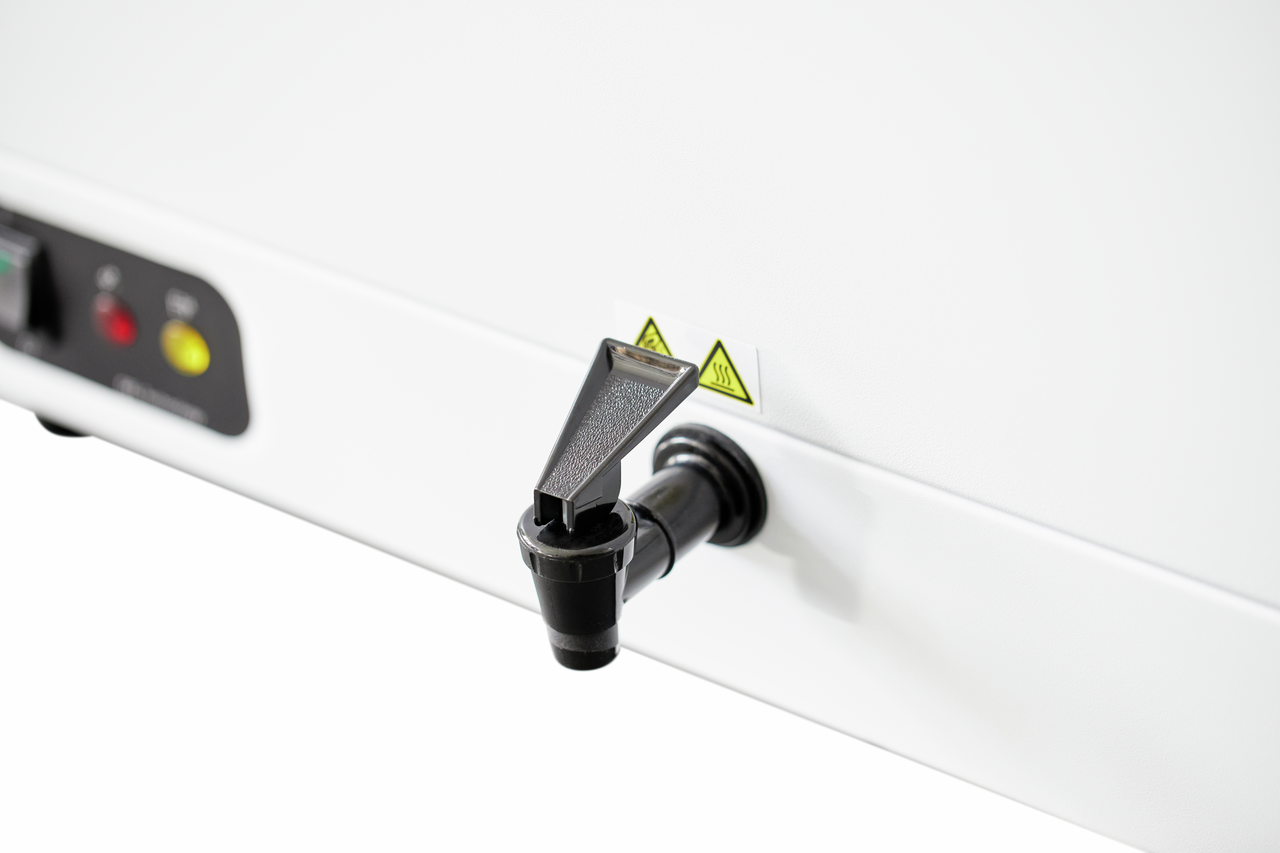

Distillate withdrawal through drain cock with continuous and touch position.
Economical energy consumption by distillation of the heated cooling water.
CO2 degassing through outlet in the condenser.
Thermostatic low water cut-off
Double-walled housing

Technical data

Conductivity stage 1 /25 °C
2.3 µS/cm
Production output
4 L/h
Tank volume
8 L
Heater power max.
3 kW
Max. power consumption
3 kW
Cooling water flow rate
0.8 L/min
Pressure difference cooling water min.
3 bar
Maximum_Pressure_Cooling_Water
7 bar
Dimensions (WxDxH)
620 x 330 x 460 mm
Weight
21 kg
Ambient temperature range
10 ... 40 °C
Power supply
230 V; 50/60 Hz
Power plug
Power cord with angled plug (CEE7/7)
Download Data sheet Puridest PD 4 R

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Puridest Stills Stills Brochure
English
PDF 1,09 MB Download document Download document
Puridest Stills Operating instruction
English
PDF 867,79 kB Download document Download document
Puridest R Stills Operating instruction
English
PDF 1 MB Download document Download document
Puridest D Stills Operating instruction
English
PDF 1,26 MB Download document Download document
Puridest DG Stills Operating instruction
English
PDF 1,15 MB Download document Download document
Chapter Stills
Overall brochure 		Stills Brochure
English
PDF 1,48 MB Download document Download document

Accessories

Dechlorite Filter with first filling
Dechlorite Filter with first filling
Phosphate Cartridge with first filling
Phosphate Cartridge with first filling
Pre-Filter 1 µm with fine filter candle
Pre-Filter 1 µm with fine filter candle
Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
