Puridest PD 12 R

LAUDA Puridest stills do not require any specialists for commissioning and maintenance and do not place any high demands on the raw water that is to be connected. Ultra-pure water is extracted by simply pressing a button.

Order no.: L003116
Inquire about product
Back to overview Water stills for single distillation

Features

Water Still for single distillation (fully automatic) with storage tank, suitable for both bench and wall mounting
Condenser (cooling coil) inside the storage tank, easily exchangeable.
Water saving through automatic water cut-off. Unnecessary water consumption will be avoided.

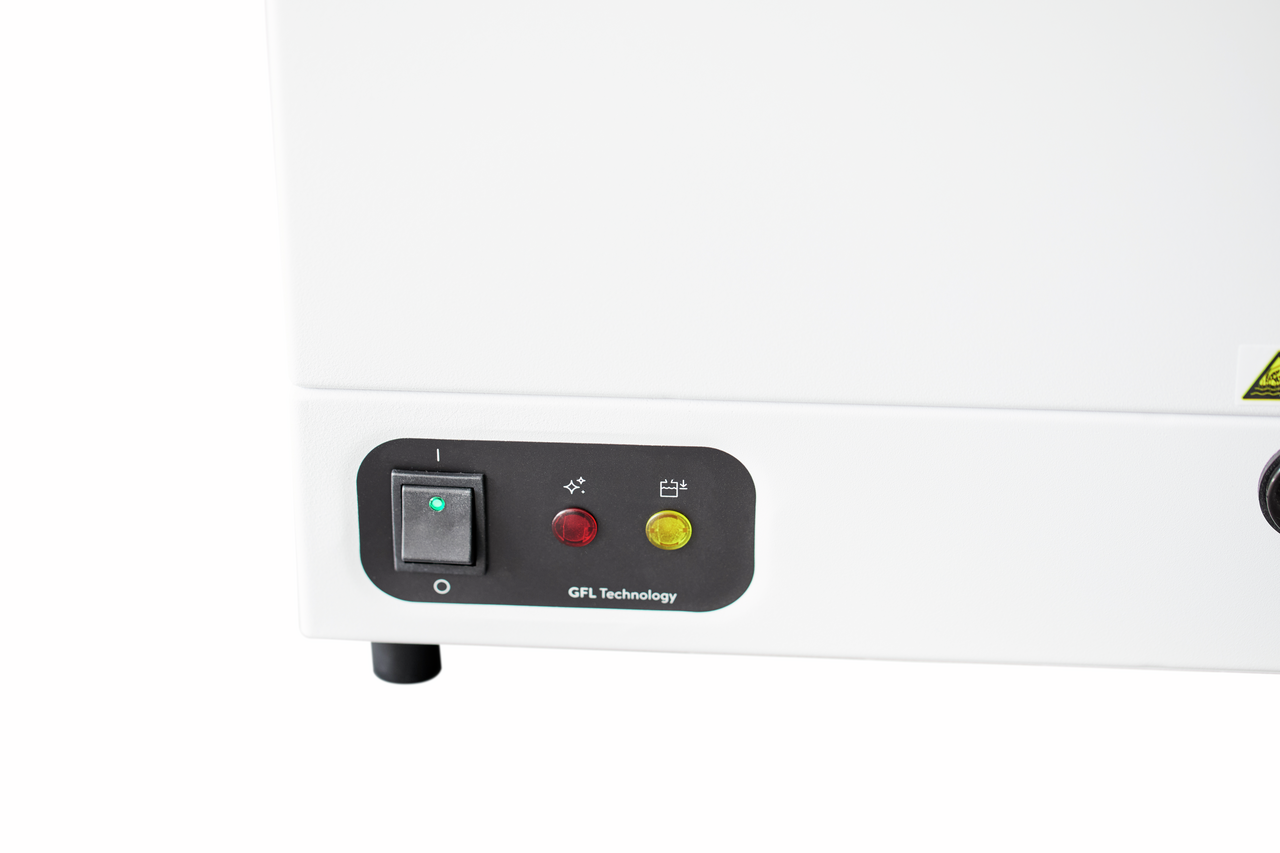

Electronic contamination monitoring of the still with distillation stop and visual cleaning instruction
Heating element, evaporator, storage tank and condenser made of stainless steel.
The distillate storage tank accepts twice the hourly capacity of the still
Solenoid valve to control the water supply
Evaporator easily accessible for cleaning purposes.
Automatic refill of the storage tank after distillate removal, controlled by electronic level detection
Housing made of galvanised sheet steel, powder coated

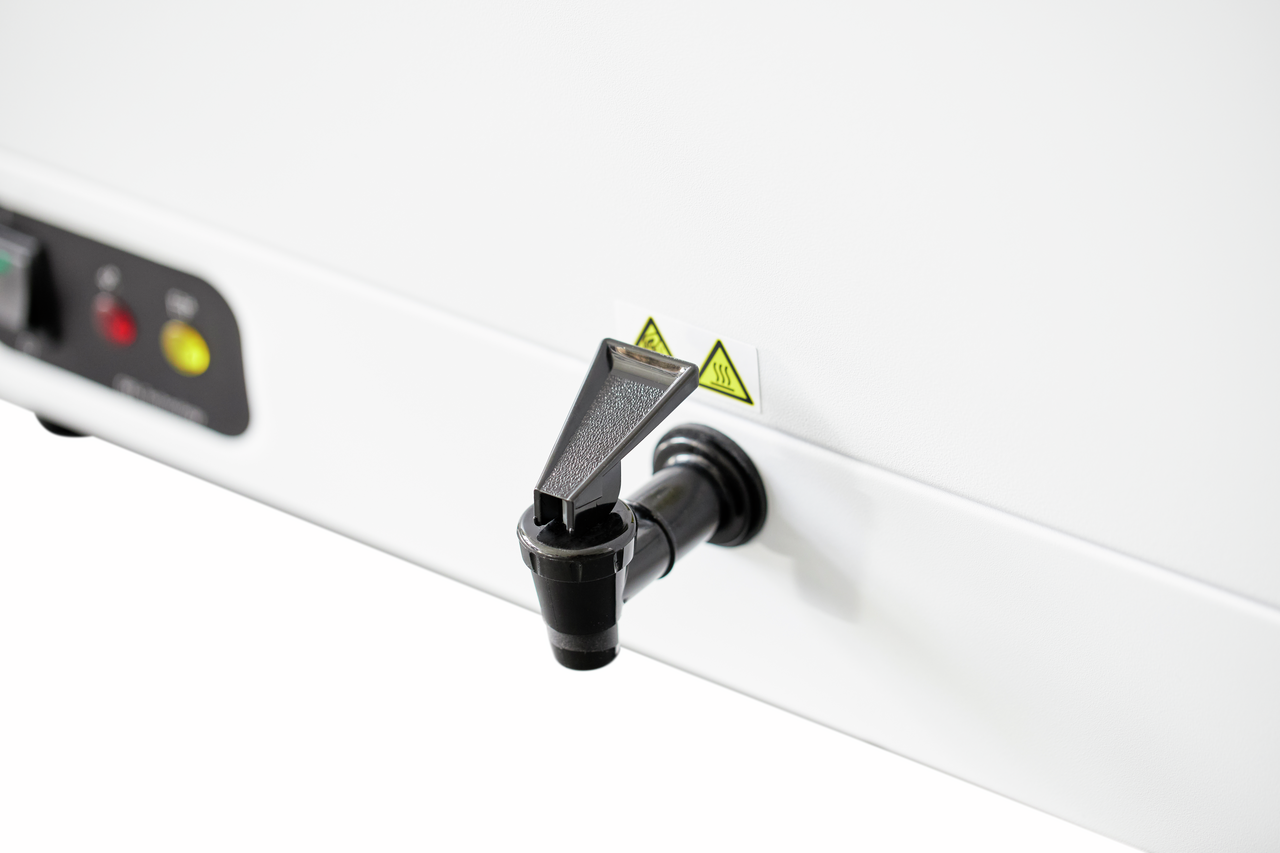

Distillate withdrawal through drain cock with continuous and touch position.
Economical energy consumption by distillation of the heated cooling water.
CO2 degassing through outlet in the condenser.
Thermostatic low water cut-off
Double-walled housing

Technical data

Conductivity stage 1 /25 °C
2.3 µS/cm
Production output
12 L/h
Tank volume
24 L
Heater power max.
9 kW
Max. power consumption
9 kW
Cooling water flow rate
3.3 L/min
Pressure difference cooling water min.
3 bar
Maximum_Pressure_Cooling_Water
7 bar
Dimensions (WxDxH)
780 x 410 x 670 mm
Weight
41 kg
Ambient temperature range
10 ... 40 °C
Power supply
220 V; 3/PE; 50/60 Hz
Power plug
Power cord without plug (HAR)
