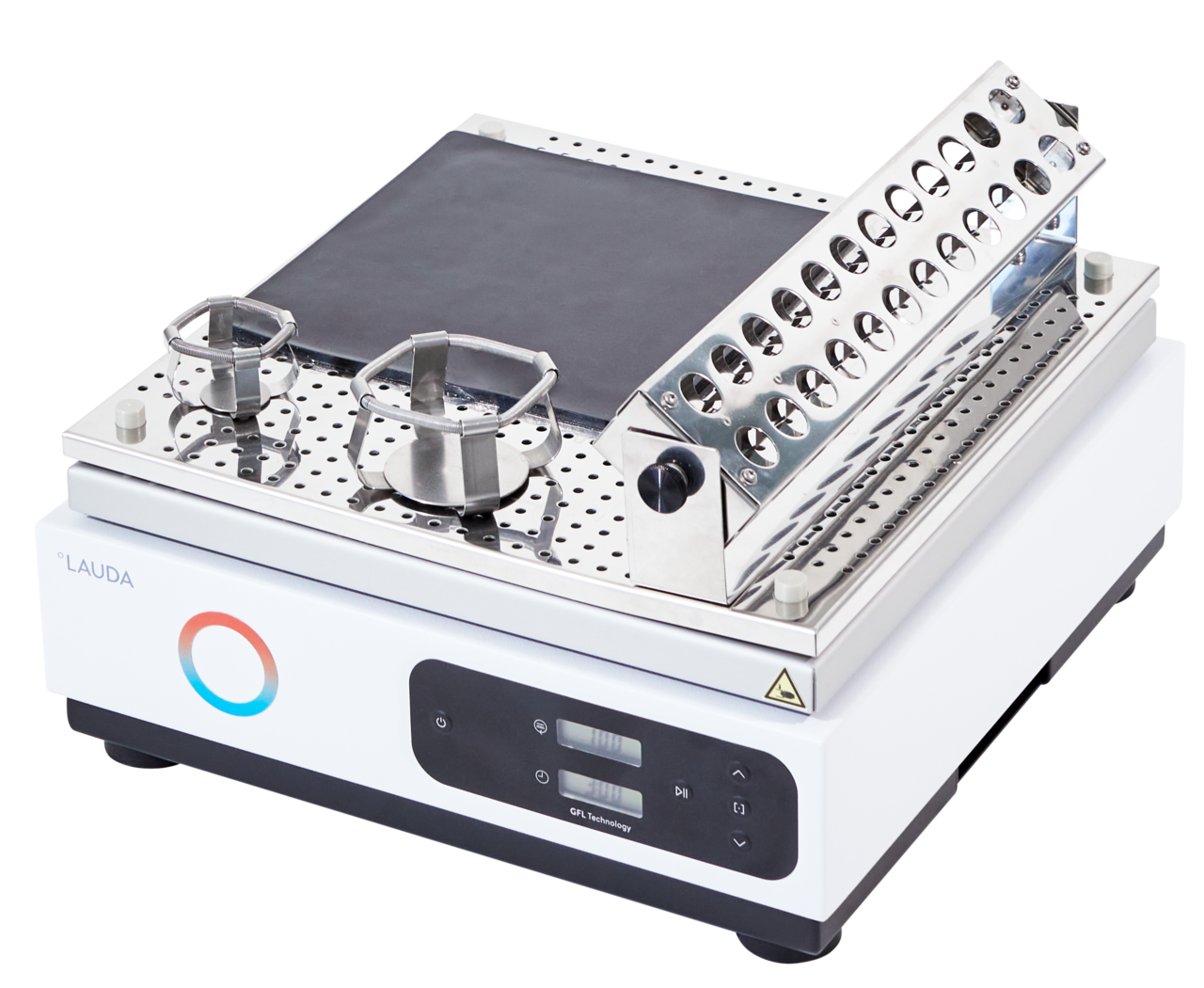

Varioshake VS 8 B

LAUDA Varioshake shakers are available in versions with a load capacity of 8 to 30 kg and work surfaces of up to 676 x 540 mm. The intuitive digital control allows easy operation.

Order no.: L003138
Inquire about product
Back to overview Shakers

Features

Shaker with bidirectional motion, heavy-duty, low-noise in a compact design
User-friendly microprocessor technology
Optional RS 232 interface on request
Compact, low-wear mechanism with mass balancing for a secure stand
Outer housing made of electrolytically galvanized sheet steel, powder-coated
Shaking frequency display and setting digitally via LC display, in steps of 1.0 rpm, gentle start-up
Membrane keyboard with distinctive symbols.
Shaking table made of anodized aluminum with four plastic pins
Constant speed, independent of load
The setpoint and actual values ​​as well as the shaking frequency are displayed on two LC displays
Timer adjustable from 1 min. up to 99:59 hours or continuous operation
Drive by an overload-protected AC motor
Excellent for continuous use

Technical data

Ambient temperature range
10 ... 50 °C
Max. power consumption
0.07 kW
Shaking amplitude
20 mm
Shaking frequency
20 ... 300 1/min
Max. load
8 kg
Dimensions (WxDxH)
350 x 355 x 160 mm
Weight
11 kg
Power plug
Power cord with plug (SEV 1011, SEV 5934/2, T23)
Power supply
230 V; 50/60 Hz
Download Data sheet Varioshake VS 8 B

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Varioshake Shakers Shakers Brochure
English
PDF 883,78 kB Download document Download document
Varioshake Shakers Shakers Operating instruction
English
PDF 1,19 MB Download document Download document
Varioshake Shaking incubator Shakers Operating instruction
English
PDF 864,63 kB Download document Download document
Chapter Shakers
Overall brochure 		Shakers Brochure
English
PDF 1,29 MB Download document Download document
Varioshake Overhead Shaker Shakers Operating instruction
English
PDF 849,67 kB Download document Download document

Accessories

Universal mount for Shakers,
Universal mount for Shakers,
Adhesive mat, black, 200 x 200 mm,
Non-slip mat for Shakers,
Non-slip mat for Shakers,
Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
