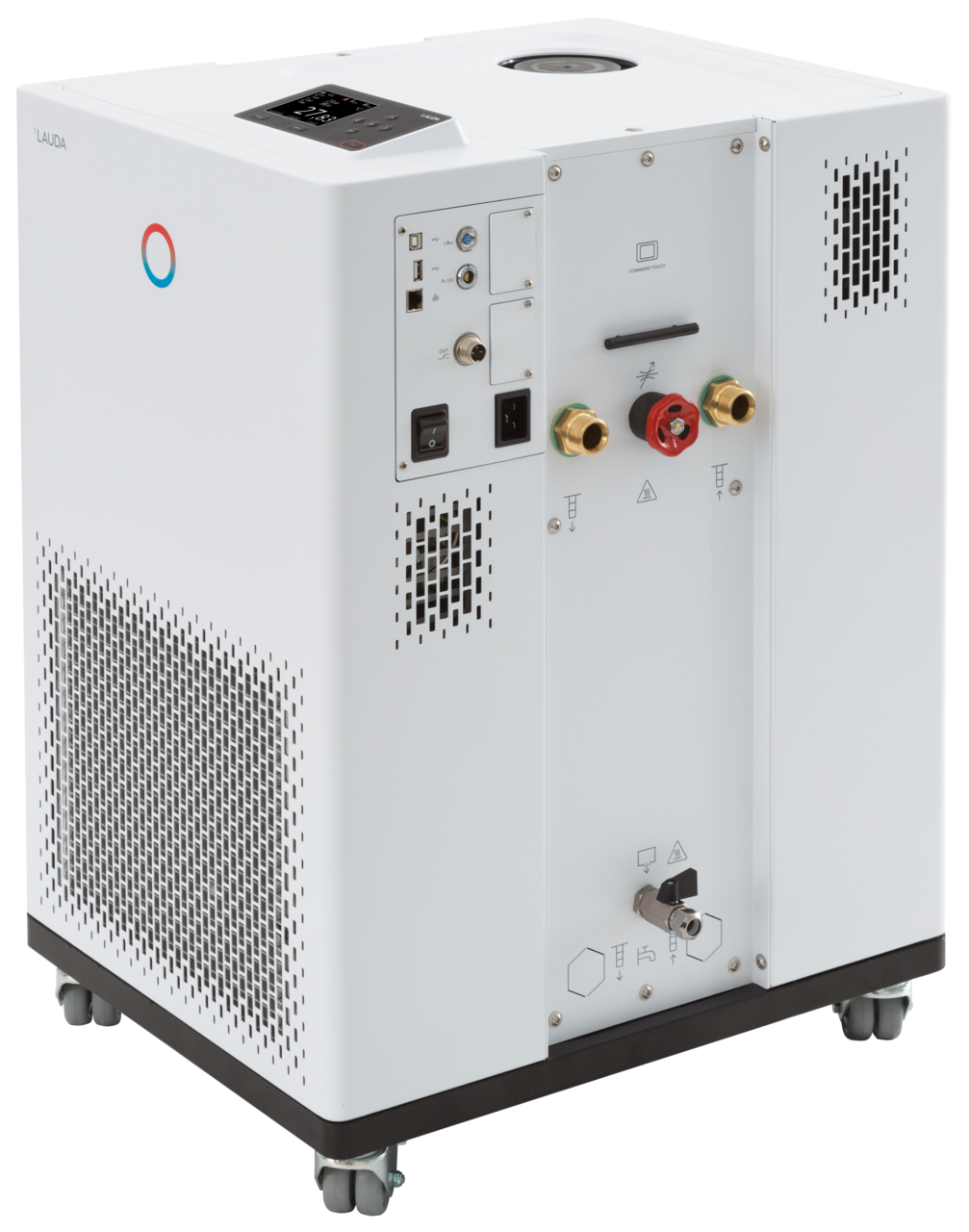

Integral IN 230 T

With the modular interface concept, you can integrate the new Integral process thermostats into your processes with maximum flexibility. The devices are equipped as standard with interfaces such as Ethernet, USB or Pt 100. Additional interfaces and communication protocols can be easily added via modules.

Order no.: L002791
Inquire about product
Back to overview Circulation and process thermostats

Features

Process thermostat with integrated cooling system for dynamic temperature control within external circuits
Management of heat transfer liquids with stored properties
Fully electronic continuous controller with PID action for internal & external control
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Port for external Pt100 integrated, second external Pt100 feasible via interface module
Programmer with 150 temperature/time segments that can be separated into 5 programs
Integrated web server for browser based operation in local area networks via PC, tablet or smart phone, secure data transfer due to authentication procedure and encryption
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Self adapt function for determination of control parameters
Extremely powerful pressure pump
Remote fault indication through floating contact
Adjustable bypass for pressure limiting
SmartCool system for energy-saving digital cooling management including compressor on-off control
Clear text menu navigation, six selectable languages DE, EN, FR, ES, IT, RU
SelfCheck Assistant for system diagnosis
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
USB and Ethernet interface equipped as standard
Option for upgrading up to 2 additional interfaces (RS 232/485, Profibus, analogue, contact or EtherCAT module)
Digital display of pump pressure
Condenser cooling Air

Working range

Min. working temperature

-30 °C

Max. working temperature

120 °C

Temperature stability

0.05 ± K

Technical data (according to DIN 12876)

Working temperature range
-30 ... 120 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
2.7 kW
Max. power consumption
3.5 kW
Current consumption
16 A
Max. discharge pressure
4,5 bar
Max. pump flow pressure
45 L/min
In / Outlet connection thread (outside)
G 3/4"
Inlet/outlet hose size
3/4″
Min. filling volume
3.6 L
Max. filling volume
8.7 L
Dimensions (WxDxH)
430 x 550 x 760 mm
Weight
85 kg
Noise level
63 dB(A)
Power supply
208-220 V; 60 Hz
Power plug
Power cord with plug (NEMA 6-20P)
Certification
NRTL according to UL 1995:2018, CSA C22.2 no. 236-15 Ed.5th
TemperatureTempering mediumCooling capacity 60 Hz
100 °CThermal oil2.2 kW
20 °CEthanol2.2 kW
10 °CEthanol1.9 kW
0 °CEthanol1.5 kW
-10 °CEthanol1 kW
-20 °CEthanol0.6 kW
-30 °CEthanol0.15 kW
