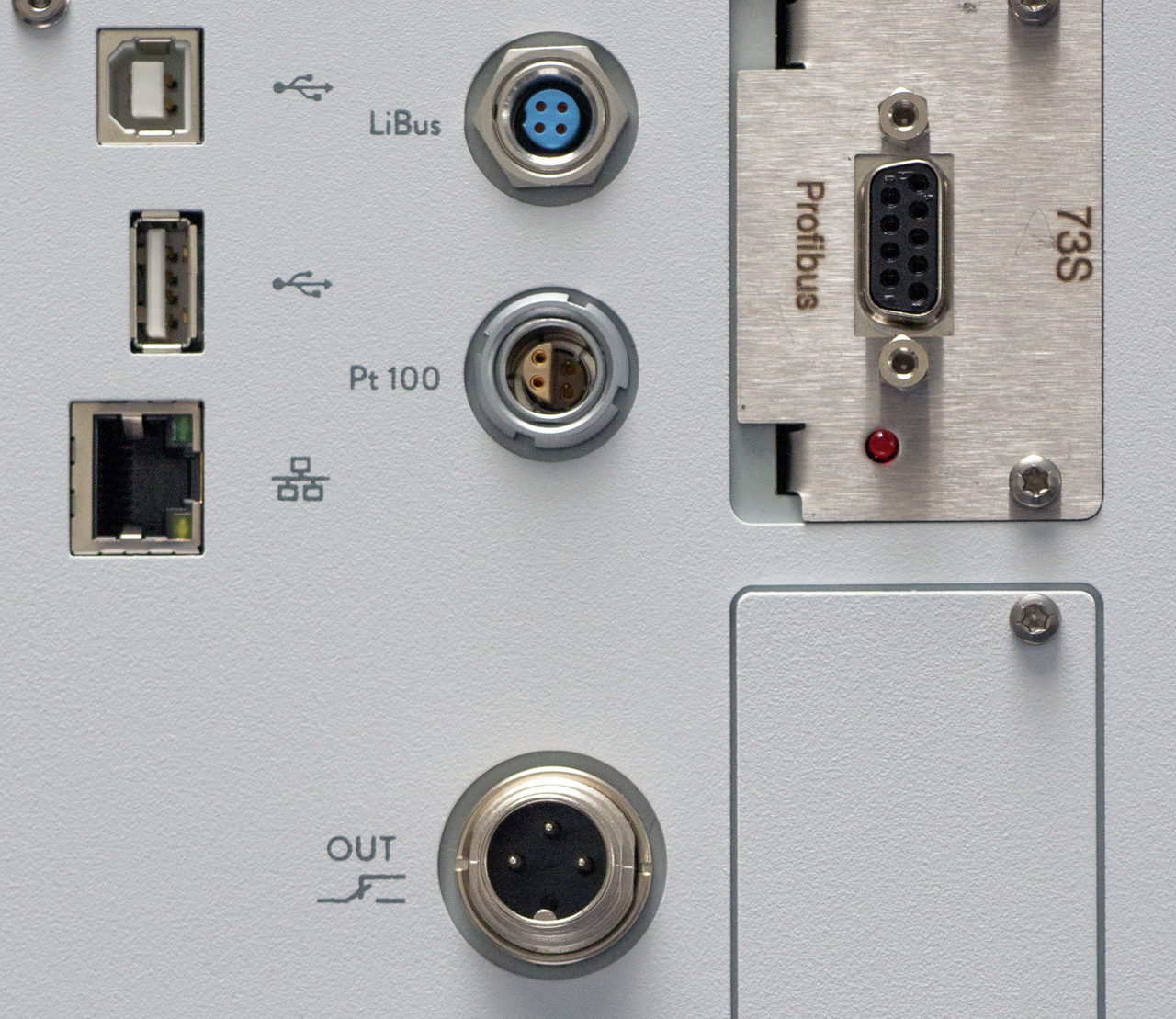

With the modular interface concept, you can integrate the new Integral process thermostats into your processes with maximum flexibility. The devices are equipped as standard with interfaces such as Ethernet, USB or Pt 100. Additional interfaces and communication protocols can be easily added via modules.
Min. working temperature
-30 °C
Max. working temperature
120 °C
Temperature stability
0.05 ± K
| Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz |
|---|---|---|---|
| 100 °C | Thermal oil | 5 kW | 5 kW |
| 20 °C | Ethanol | 5 kW | 5 kW |
| 10 °C | Ethanol | 4.5 kW | 4.5 kW |
| 0 °C | Ethanol | 3.8 kW | 3.8 kW |
| -10 °C | Ethanol | 2.6 kW | 2.6 kW |
| -20 °C | Ethanol | 1.5 kW | 1.5 kW |
| -30 °C | Ethanol | 0.6 kW | 0.6 kW |
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
|
Chapter Circulation and process thermostats Overall brochure | Process thermostats | Brochure |
English
| 4,84 MB |
Download document
| |
| Integral T New Generation | Process thermostats | Operating instruction |
English
| 7,14 MB |
Download document
| |
| Integral T New Generation | Process thermostats | Brochure |
English
| 2,22 MB |
Download document
| |
| LAUDA Command App | Process thermostats | Software |
English
| EXE | 65,34 MB |
Download document
|
| Operating unit Command Touch | Accessories | Operating instruction |
English
| 1,75 MB |
Download document
|
