Low-temperature thermostats for professional temperature control in the bath from -100 to 200°C

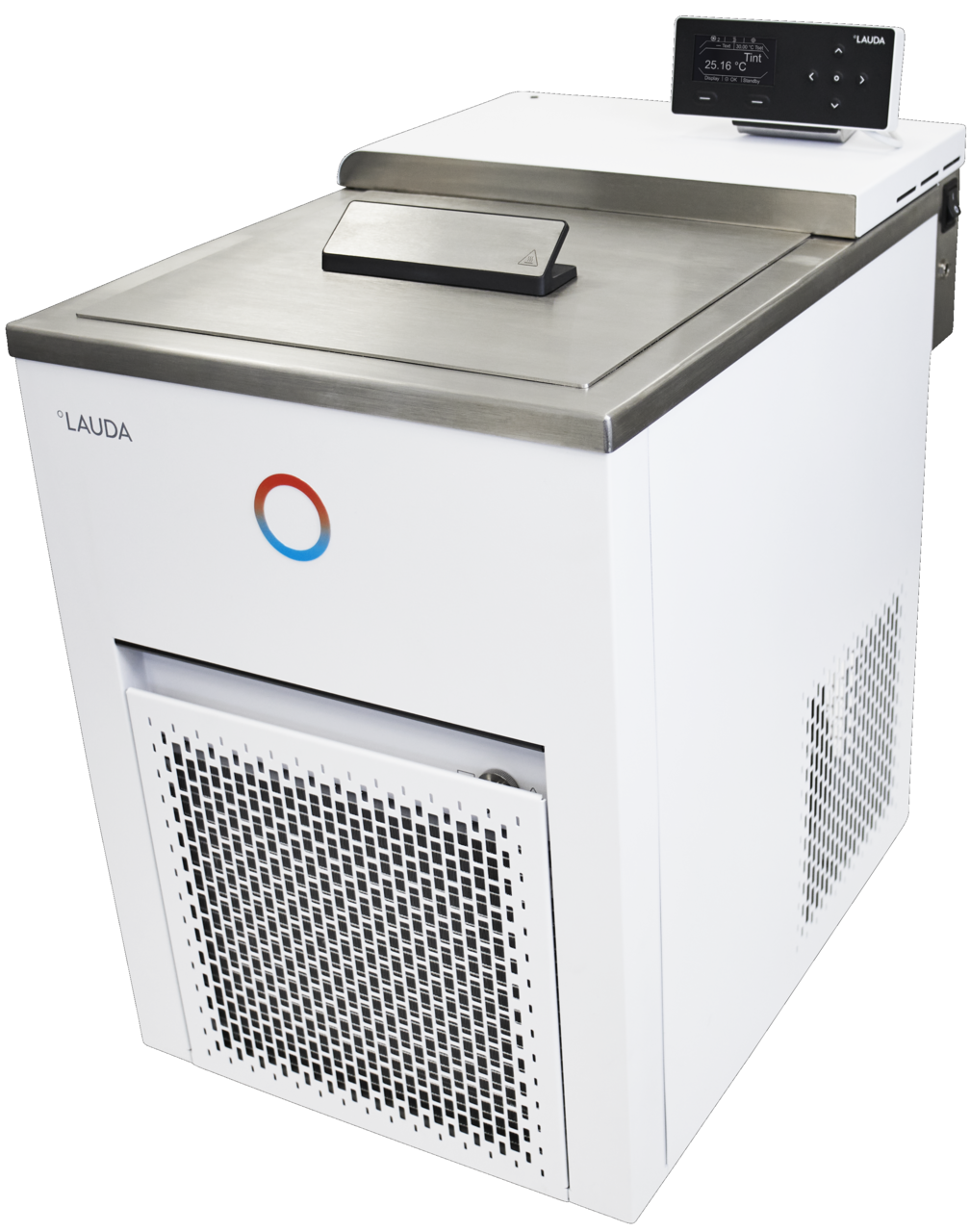

The LAUDA PRO is fit for the future and offers an outstanding overall design. There are two operating units available, Base or Command Touch.

These can be removed from the thermostat for very high levels of flexibility. On the one hand, this permits remote control of the devices, and, other hand, this considerably reduces the height of the devices.

The LAUDA PRO devices are equipped with hybrid cooling as standard. This enables additional cooling of the refrigerating machine with water.

Overview

Benefits and added value

Internal LAUDA Vario pump with 8 selectable output levels for optimal temperature homogeneity
Hybrid cooling of the refrigerating machine permits cooling using ambient air or with cooling water
Standard bath edge heating prevents the formation of ice on the surface of the bath cover
Ethernet, USB and Pt100 as standard

Working range

The PRO low-temperature bath thermostats for internal bath applications offer a working temperature range from -100 to 200°C. A multi-stage adjustable pump ensures excellent homogeneity of the bath. With their bath sizes from 10 to 30 liters and cooling capacity from 0.4 to 1.5 kW, the low temperature thermostats are suitable for a wide range of applications.

Min. working temperature

-40 °C

Max. working temperature

200 °C

Temperature stability

0.01 ± K

Product lines

Product	Min. working temp	Max. working temp	Heater power max.	Cooling output at 20 °C 60 Hz
PRO RP 1090	-90 °C	200 °C	3.3 kW	0.8 kW	Details
PRO RP 2040	-40 °C	200 °C	3.3 kW	0.8 kW	Details
PRO RP 2040 C	-40 °C	200 °C	1.3 kW	0.8 kW	Details
PRO RP 2045	-45 °C	200 °C	3.3 kW	1.5 kW	Details
PRO RP 2090	-90 °C	200 °C	3.3 kW	0.8 kW	Details
PRO RP 2090 C	-90 °C	200 °C	3.3 kW	0.8 kW	Details
PRO RP 3035	-35 °C	200 °C	3.3 kW	0.8 kW	Details

Device dimensions

400 x 565 x 730 mm

500 x 600 x 730 mm

440 x 600 x 730 mm

440 x 600 x 680 mm

400 x 565 x 680 mm

500 x 600 x 780 mm

Characteristics

Downloads - general product data

Device	Device category	Document type	Language	Format	File size
PRO with Command Touch remote control unit	Bath thermostats	Operating instruction	English	PDF	4,53 MB	Download document
PRO with Command Touch remote control unit	Circulation thermostats	Operating instruction	English	PDF	4,53 MB	Download document
PRO with Base remote control unit	Bath thermostats	Operating instruction	English	PDF	3,86 MB	Download document
PRO with Base remote control unit	Circulation thermostats	Operating instruction	English	PDF	3,86 MB	Download document
Supplementary pump	Accessories	Operating instruction	English	PDF	1,26 MB	Download document
Chapter Cooling thermostats Overall brochure	Bath thermostats	Brochure	English	PDF	2,6 MB	Download document
Chapter Heating thermostats Overall brochure	Bath thermostats	Brochure	English	PDF	3,35 MB	Download document
Chapter Circulation and process thermostats Overall brochure	Circulation thermostats	Brochure	English	PDF	4,84 MB	Download document
Shut Down Valve LiBus	Accessories	Operating instruction	English	PDF	567 kB	Download document
Operating unit Command Touch	Accessories	Operating instruction	English	PDF	1,75 MB	Download document

Accessories

Please use the LAUDA accessories finder for additional accessories.

LAUDA accessory finder
